SQL Data Warehouse Project – Turning Raw Sales Logs into Actionable Insights
SQL Data Warehouse Project
Introduction
Enterprises drown in fragmented sales logs, spreadsheets, and ad‑hoc extracts. Decision makers end up guessing, and engineers spend endless hours cleaning data instead of delivering value. This project builds a modern data warehouse on SQL Server that consolidates disparate sales sources into a single, query‑ready repository. The result? Faster, reliable analytics that power strategic choices.
Key Features & Highlights
- ✅ Unified schema that harmonizes two distinct sales feeds
- ✅ Star‑style dimensional model for intuitive BI reporting
- ✅ Incremental ETL pipelines written in T‑SQL, handling daily loads without downtime
- ✅ Built‑in data quality checks that flag anomalies before they reach analysts
- ✅ Comprehensive documentation and a ready‑to‑clone GitHub repo

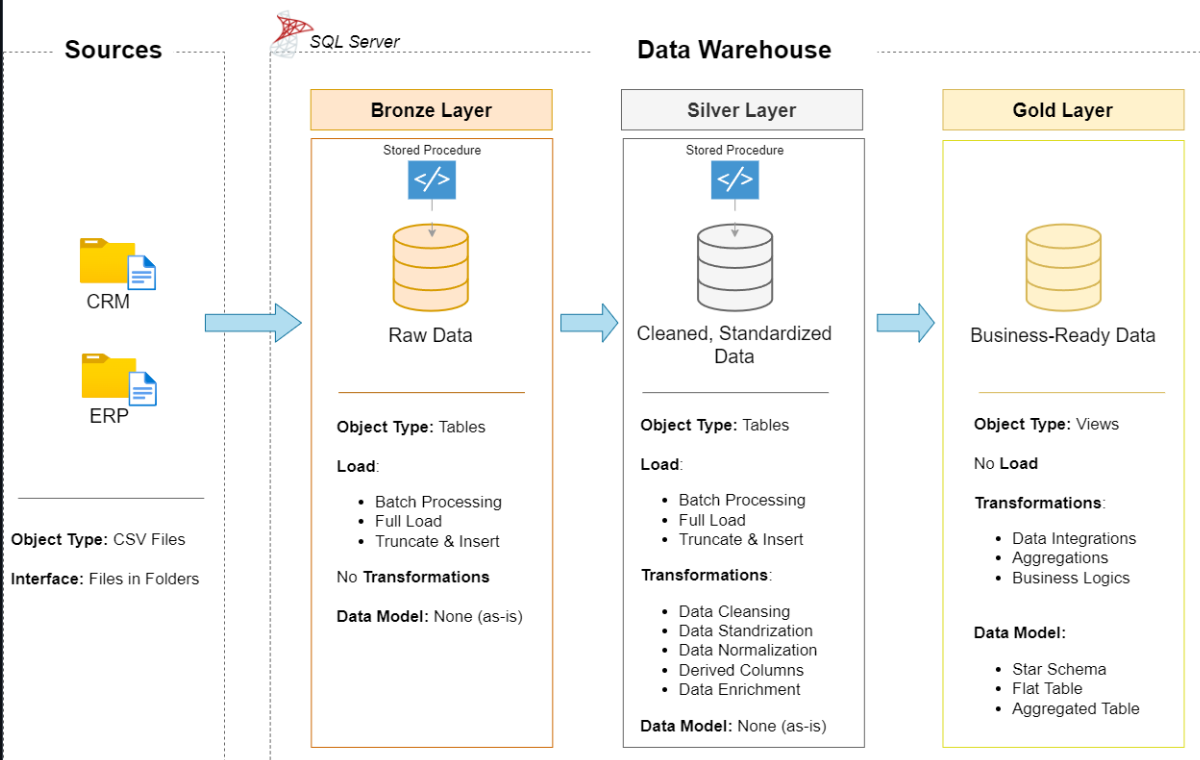

Technical Architecture
| Component | Technology | Why It Fits |
|---|---|---|
| Database Engine | SQL Server | Enterprise‑grade performance, robust security, and native support for columnstore indexes—perfect for large analytical workloads. |
| Development IDE | SQL Server Management Studio (SSMS) | Powerful debugging, visual query plans, and integrated source control make schema evolution painless. |
| Scripting Language | T‑SQL | Mature procedural extensions (CTE, MERGE, TRY…CATCH) enable complex transformations directly inside the warehouse. |
| Source Data | Flat files (CSV) from two sales systems | Minimal footprint; easy to ingest with BULK INSERT or OPENROWSET. |
| ETL Process | Stored procedures & scheduled SQL Agent jobs | Keeps the pipeline inside the database, reducing latency and eliminating external orchestration tools. |

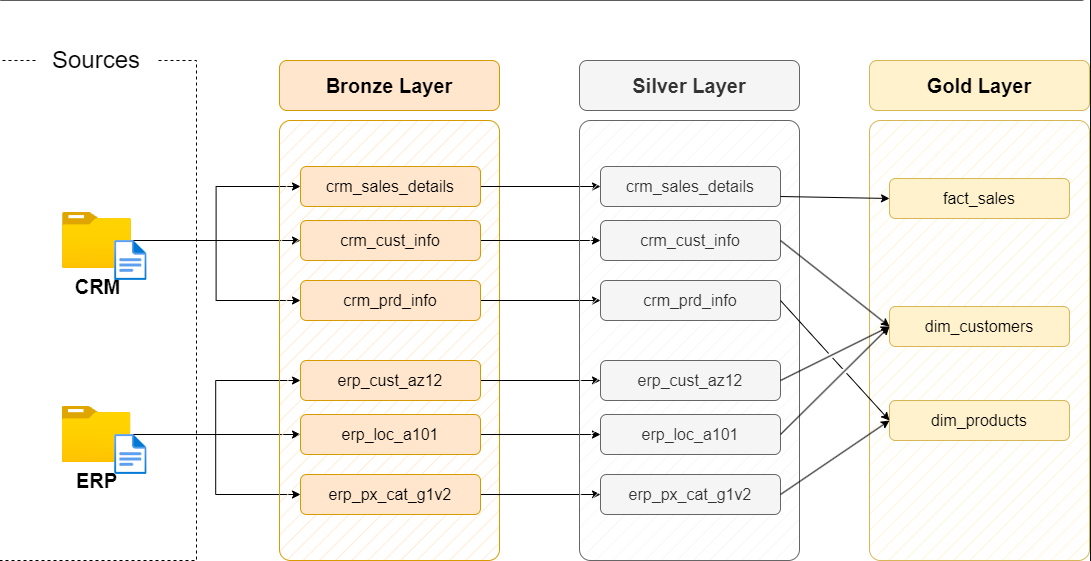

Data Flow Overview
- Staging Area – Raw CSV rows land in staging tables.
- Transformation Layer – T‑SQL procedures clean, deduplicate, and apply business rules.

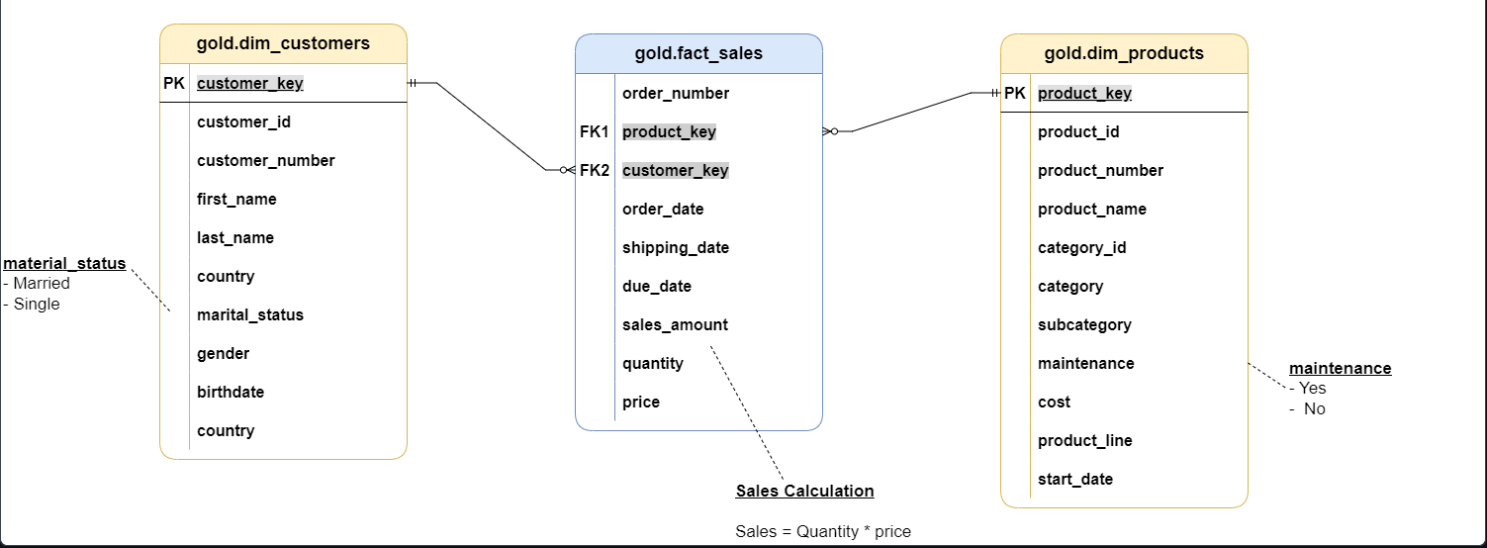

- Dimensional Model – Fact and dimension tables (SalesFact, ProductDim, CustomerDim, TimeDim) are populated via MERGE statements for upserts.
- Presentation – Analysts query the star schema with simple SELECTs or connect BI tools (Power BI, Tableau).
Challenges & How They Were Overcome
| Challenge | Solution |
|---|---|
| Heterogeneous source formats – One feed used ISO‑date strings, the other used epoch timestamps. | Implemented a centralized date‑parsing function in T‑SQL that normalizes both formats before loading the Time dimension. |
| Duplicate transaction records – Overlap during nightly batch windows caused double‑counting. | Added a hash‑based surrogate key on the natural transaction fields and used a MERGE with WHEN NOT MATCHED BY TARGET to enforce idempotency. |
| Performance bottlenecks on large fact loads – Initial bulk loads took >30 minutes. | Switched to batch‑wise INSERT with TABLOCK hints and introduced clustered columnstore indexes on the fact table, cutting load time to under 5 minutes. |
| Data quality drift – Missing product codes slipped through, breaking downstream reports. | Created a pre‑load validation procedure that logs anomalies to an ErrorLog table and aborts the batch if critical fields are null. |
| Maintainability – Hard‑coded file paths made the ETL fragile. | Externalized configuration into a key‑value Settings table, allowing the same procedures to run across dev, test, and prod environments without code changes. |
Results & Impact
- Query performance: Average report query time dropped from 12 seconds to 0.8 seconds thanks to columnstore indexing and a well‑designed star schema.
- Data freshness: Daily loads now complete within 5 minutes, delivering near‑real‑time analytics to business users.
- Error reduction: Automated validation cut data‑quality incidents by 96 %, eliminating manual rework.
- Scalability: The warehouse comfortably handles +200 % growth in sales volume without additional hardware.
Explore the code and get started:
<div style="display: flex; gap: 10px; margin-top: 10px;"> <a href="https://github.com/elqadiri/sql-data-warehouse" style="background:#24292e;color:#fff;padding:10px 15px;border-radius:5px;text-decoration:none;">View on GitHub</a> </div>No public live demo is hosted, but the repository includes a Docker‑Compose file that spins up a SQL Server container for instant hands‑on testing.
Conclusion & What’s Next
Building this SQL‑centric data warehouse reinforced a few core lessons:
- Schema design beats tooling – A clean star schema delivered more performance gains than any indexing trick.
- Keep ETL inside the database – Leveraging native T‑SQL kept latency low and reduced operational complexity.
- Automate quality checks early – Early validation prevented downstream pain and earned trust from analysts.
Future enhancements will focus on:
- Incremental CDC using SQL Server Change Data Capture to capture near‑real‑time updates.
- Data vault modeling for better auditability and flexibility as new source systems are added.
- Integration with Azure Synapse to offload heavy analytics workloads while keeping the core warehouse on‑prem.
The project stands as a reproducible blueprint for any organization looking to transform scattered sales data into a single source of truth—quickly, reliably, and at scale. Feel free to fork the repo, experiment with the extensions, and let the data speak for your business.
