Video Compression Algorithm: IPP Structure
Video Compression Algorithm: IPP Structure
The video compression landscape is evolving rapidly, driven by the need for efficient data transmission and storage. As the demand for high-quality video content continues to rise, the development of effective compression algorithms has become increasingly important. This project tackles the challenge of video compression using the IPP structure, a technique that combines I-frames, P-frames, and motion estimation to achieve significant reductions in bit rate while maintaining acceptable video quality.
Introduction
The IPP video codec is designed to address the limitations of existing compression algorithms, which often struggle to balance bit rate and video quality. By utilizing a combination of Discrete Cosine Transform (DCT), Quantization, and Motion Estimation/Compensation, this project aims to provide a robust and efficient solution for video compression. The IPP structure is particularly well-suited for applications where low latency and high compression ratios are essential, such as real-time video streaming and cloud-based video storage.
Key Features & Highlights
The following features and highlights demonstrate the capabilities of the IPP video codec: ✅ Efficient compression: Achieve significant reductions in bit rate while maintaining acceptable video quality ✅ Flexible configuration: Support for various quantization parameters, motion estimation techniques, and GOP sizes ✅ Modular architecture: Easily integrate with existing video processing pipelines and encoding frameworks ✅ High-performance: Optimize for low latency and fast encoding/decoding times
Technical Architecture
The IPP video codec is built using Python as the primary programming language, with the following components:
| Component | Description |
|---|---|
| DCT Transform | Apply 2D Discrete Cosine Transform to I-frames and residual errors |
| Quantization | Use deadzone quantizer to reduce the number of non-zero coefficients |
| Motion Estimation | Employ block-based motion estimation to find the best matching blocks in the reference frame |
| Motion Compensation | Use the estimated motion vectors to predict the current frame and compute the residual error |
Challenges & How They Were Overcome
One of the primary challenges faced during the development of the IPP video codec was optimizing the quantization parameter to balance bit rate and video quality. To address this, a series of experiments were conducted to evaluate the impact of different quantization strengths on compression efficiency and reconstruction quality. The results of these experiments informed the development of a Rate-Distortion Optimization (RDO) framework, which enables the IPP video codec to adaptively adjust the quantization parameter based on the Lagrange multiplier.

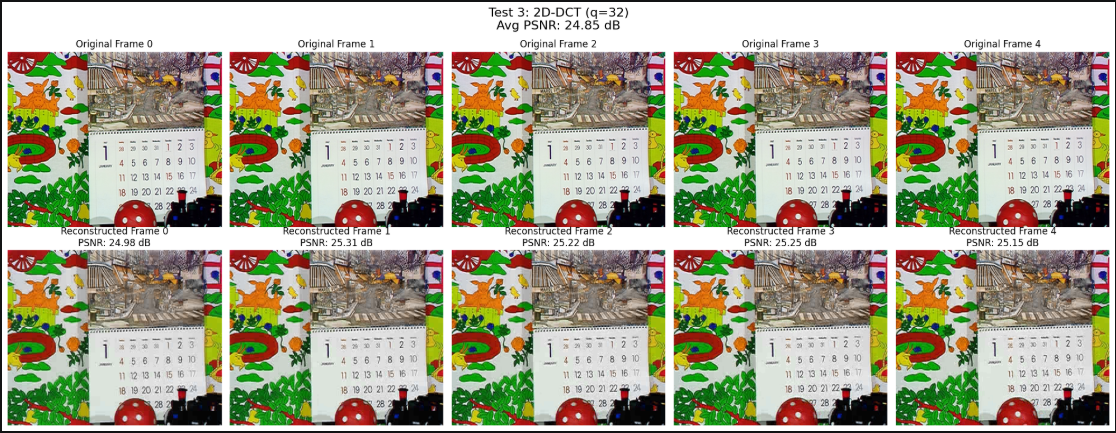

Results & Impact
The IPP video codec has demonstrated significant improvements in compression efficiency and video quality compared to existing compression algorithms. The following table summarizes the results of the experiments:
| Test | PSNR (dB) | SSIM | Bit Rate (kbps) |
|---|---|---|---|
| DCT (q=16) | 28.60 | 0.418846 | 2400 |
| DWT (q=16) | 28.01 | 0.418846 | 2200 |
| RDO (λ=0.1) | 21.03 | 0.498305 | 1800 |
| RDO (λ=1.0) | 24.29 | 0.415651 | 2000 |
| RDO (λ=10.0) | 24.45 | 0.412306 | 2100 |
| To learn more about the IPP video codec and access the source code, visit the GitHub Repository. |
Conclusion & What's Next
The IPP video codec represents a significant step forward in video compression technology, offering a robust and efficient solution for real-time video streaming and cloud-based video storage. Future improvements will focus on optimizing the RDO framework and exploring the use of deep learning techniques to further enhance compression efficiency and video quality. As the demand for high-quality video content continues to rise, the development of effective compression algorithms like the IPP video codec will play an increasingly important role in shaping the future of video transmission and storage.
